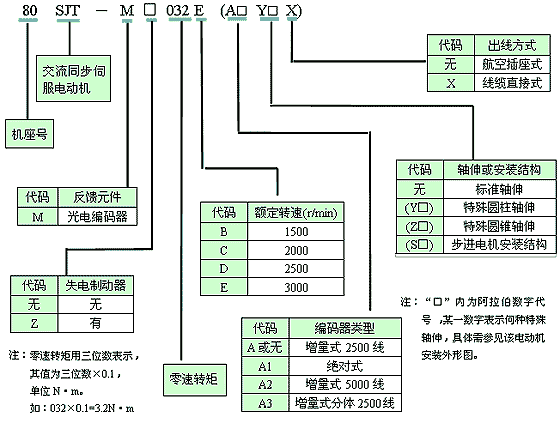

广西柏菱达数控设备有限公司  广州数控系统区域经销 产品型号说明

功能参数

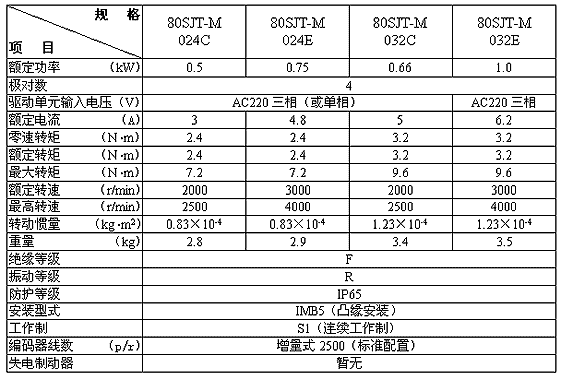

80SJT系列电动机技术参数：

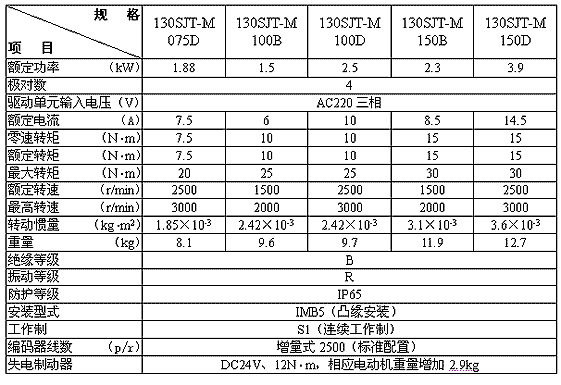

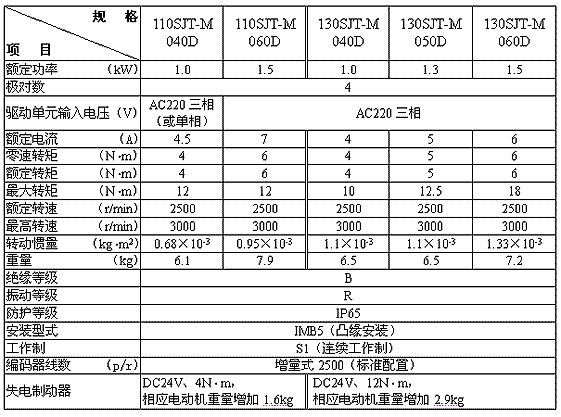

110SJT系列、130SJT系列电动机技术参数

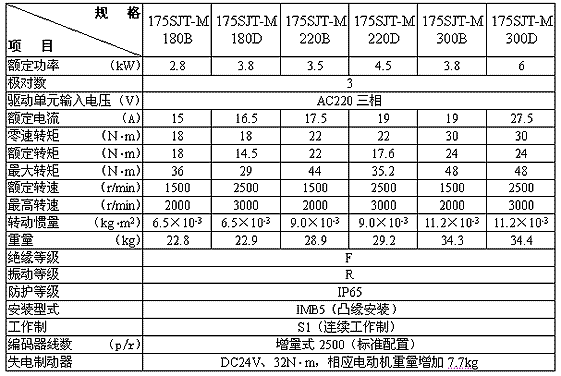

175SJT系列电动机技术参数

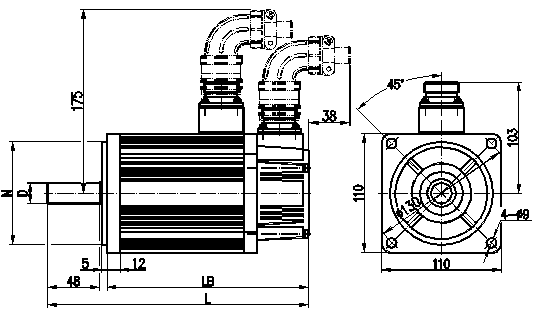

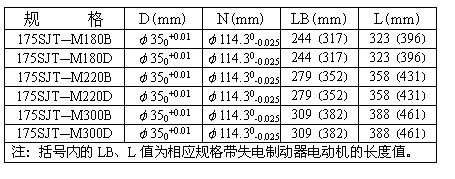

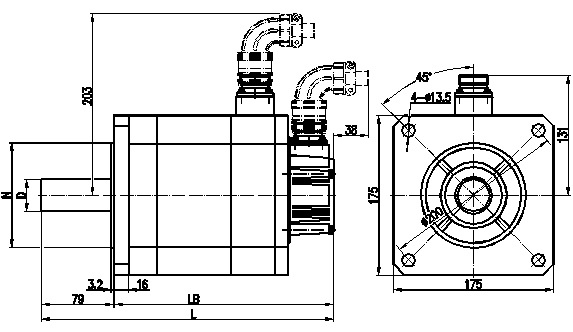

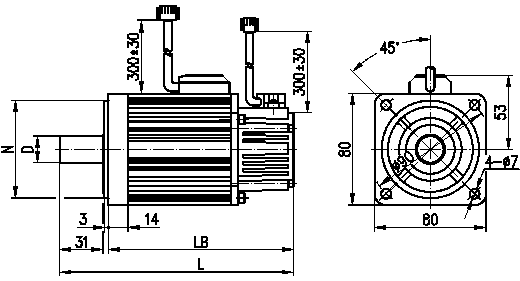

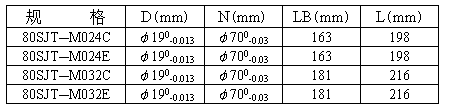

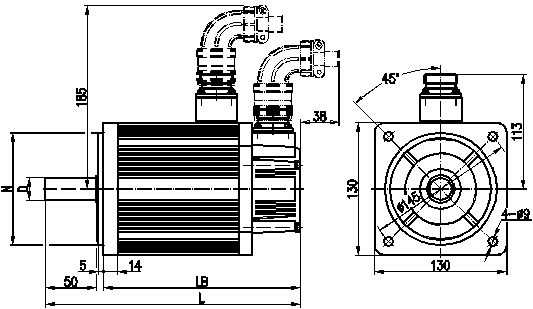

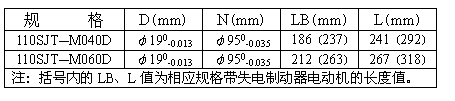

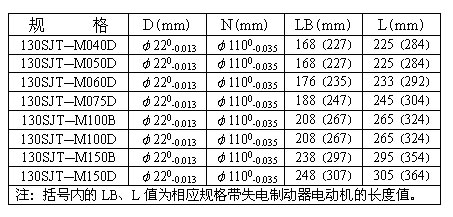

1) 80SJT系列电动机安装尺寸 航空插座式： 线缆直接式：       2) 110SJT系列电动机安装尺寸     3) 130SJT系列电动机安装尺寸       4) 175SJT系列电动机安装尺寸 广州数控DA98A/DA98B交流伺服驱动单元与GSK SJT电机配套选型如下：  DA98B-06/80SJT-M024C                DA98-B08/80SJTM-024E DA98B-07/80SJTM-032C              DA98B-10/80SJT-M032E DA98B-10/ 110SJT-M(Z)040D      DA98B-15/ 110SJT-M(Z)060D DA98B-10/130SJT-M(Z)040D        DA98B-15/130SJT-M(Z)050D DA98B-15/130SJT-M(Z)060D        DA98B-18/130SJT-M(Z)075D DA98B-15/130SJT-M(Z)100B        DA98B-26/130SJT-M(Z)100D DA98B-23/130SJT-M(Z)150B DA98B-39/130SJT-M(Z)150D DA98B-28/175SJT-M(Z)180B DA98B-38/175SJT-M(Z)180D DA98B-35/175SJT-M(Z)220B DA98B-45/175SJT-M(Z)220D DA98B-38/175SJT-M(Z)300B DA98B-60/175SJT-M(Z)300D DA98A-05/80SJT-M(Z)024C DA98A-08/80SJT-M(Z)024E DA98A-07/80SJT-M(Z)032C DA98A-10/80SJT-M(Z)032E DA98A-10 /110SJT-M(Z)040D DA98A-15 /110SJT-M(Z)060D DA98A-10/130SJT-M(Z)040D DA98A-15/130SJT-M(Z)050D DA98A-15/130SJT-M(Z)060D DA98A-18/130SJT-M(Z)075D DA98A-15/130SJT-M(Z)100B DA98A-26/130SJT-M(Z)100D DA98A-23/130SJT-M(Z)150B DA98A-39/130SJT-M(Z)150D DA98A-28/175SJT-M(Z)180B DA98A-38/175SJT-M(Z)180D DA98A-35/175SJT-M(Z)220B DA98A-45/175SJT-M(Z)220D DA98A-38/175SJT-M(Z)300B DA98A-60/175SJT-M(Z)300D Di20M-05A1-L/80SJT-M024C(Y1) Di20-M08A1-L/80SJT-M024E(Y1) Di20M07A1-L/80SJT-M032C(Y1) Di20M10A1-L/80SJT-M032E(Y1) Di20M10B2-L/110SJT-M(Z)040D(AY4) Di20M10B2-L/130SJT-M(Z)040D(AY4) Di20M15B4-L/110SJT-M(Z)060D(AY4) Di20M15B2-L/130SJT-M(Z)050D(AY4) Di20M15B2-L/110SJT-M(Z)060D(AY4) Di20M15B2-L/130SJT-M(Z)060D(AY4) Di20M20B4-L/130SJT-M(Z)075D(AY5) Di20M20B4-L/130SJT-M(Z)075D(AY5) Di20M15B2-L/130SJT-M(Z)100B(AY5) Di20M15C6-L/130SJT-M(Z)100B(AY5) Di20M25B4-L130SJT-M(Z)100D(AY5) Di20M25B4-L/130SJT-M(Z)100D(AY5) Di20-M25C6/130SJT-M(Z)100D(AY5) Di20M23B4-L/130SJT-M(Z)150B(AY5)Di20M23C6-L/130SJT-M(Z)150B(AY5) Di20M39C6-L/30SJT-M(Z)150D(AY5) Di20M28C6/175SJT-M(Z)180D(Y1) Di20M35D8-L/175SJT-M(Z)180D(Y1) Di20M35D8-L/175SJT-M(Z)220B(Y1) Di20M45D8-L/175SJT-M(Z)220D(Y1) Di20M35D8-L/175SJT-M(Z)300B(Y1) Di20M60D8-L/175SJT-M(Z)3000D(Y1)    如需本产品更详细资料，欢迎登陆官方网站下载或者来电向我公司索取！
