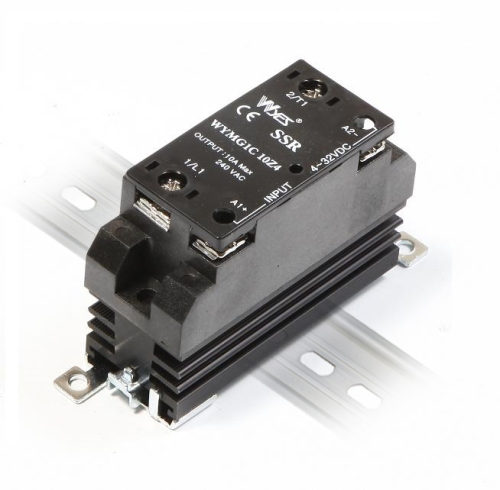

DIN-Rail type > WYMH1C10Z4 WYMH1C15Z4 WYMH1C25Z4 WYMH1C40Z4 WYMH1C10R4 WYMH1C15R4 WYMH1C25R4 WYMH1C40R4 (WYMH DIN Rail (product with self heat sink) Type)
-
Click on the above image to view larger image.
- Model NoWYMH1C10Z4 WYMH1C15Z4 WYMH1C25Z4 WYMH1C40Z4 WYMH1C10R4 WYMH1C15R4 WYMH1C25R4 WYMH1C40R4
- TYPEWYMH DIN Rail (product with self heat sink)
- RatingAC440V
- InputDC4~32V(Z4, R4 Type)
- OutputAC440V
- Capacity10A, 15A, 25A, 40A
-
-

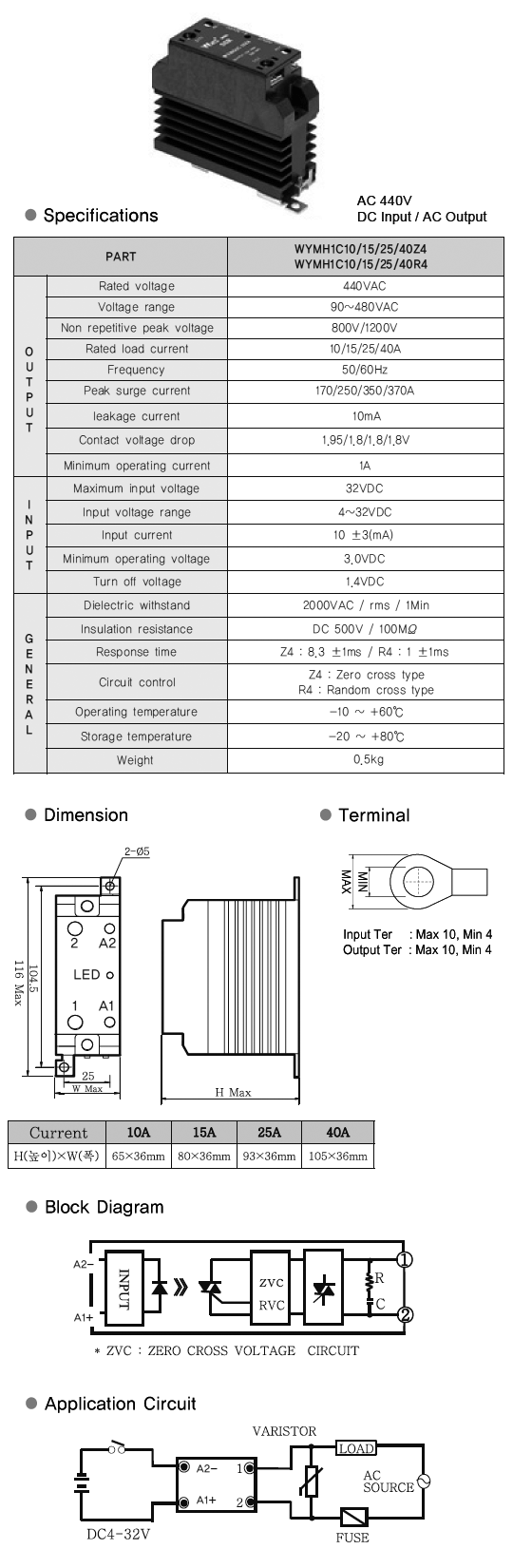

Specifications and Features
-
This product with self heat sink is a product carrying voltage of 90~480V and the current capacity of 10-40A. This integrated SSR features space utilization level which is superior to that of other products without using a separate heat sink, minimizing the area of the installing space. It can be used in a convenient way since it can also be mounted on DIN rail.
-
